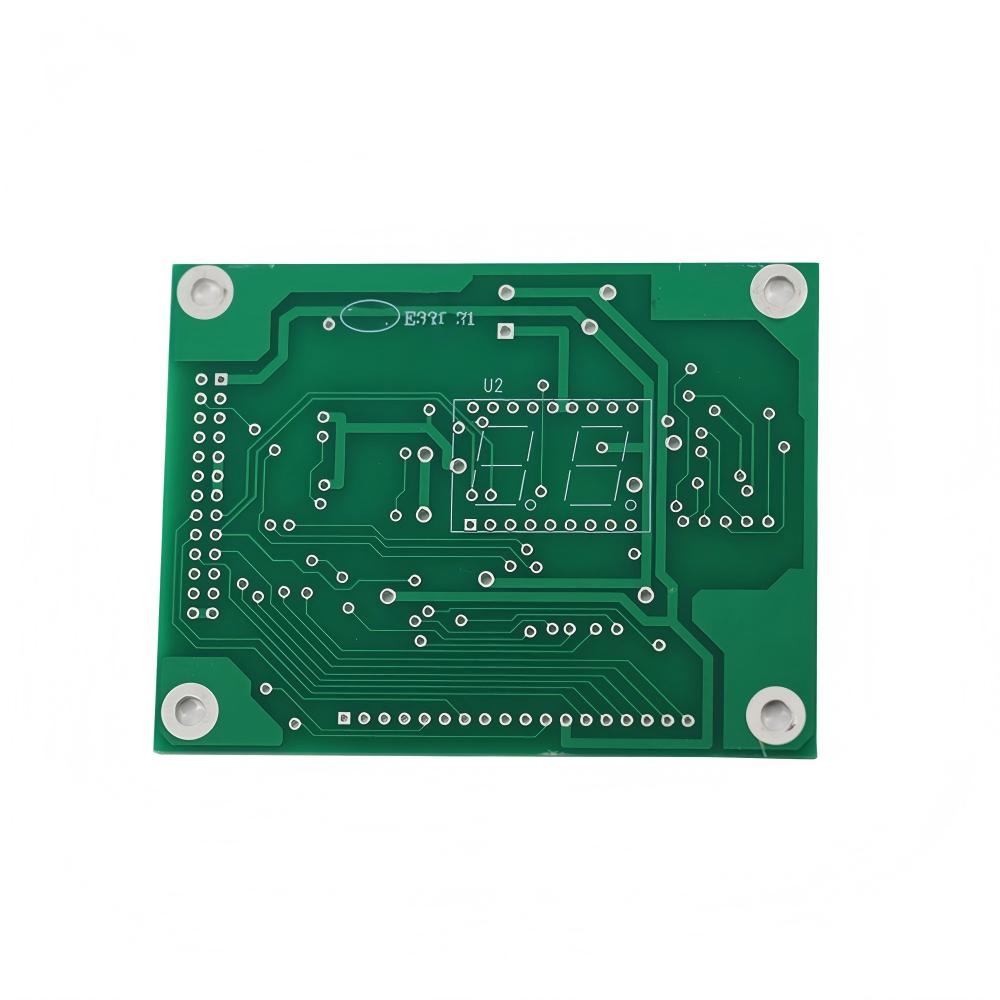

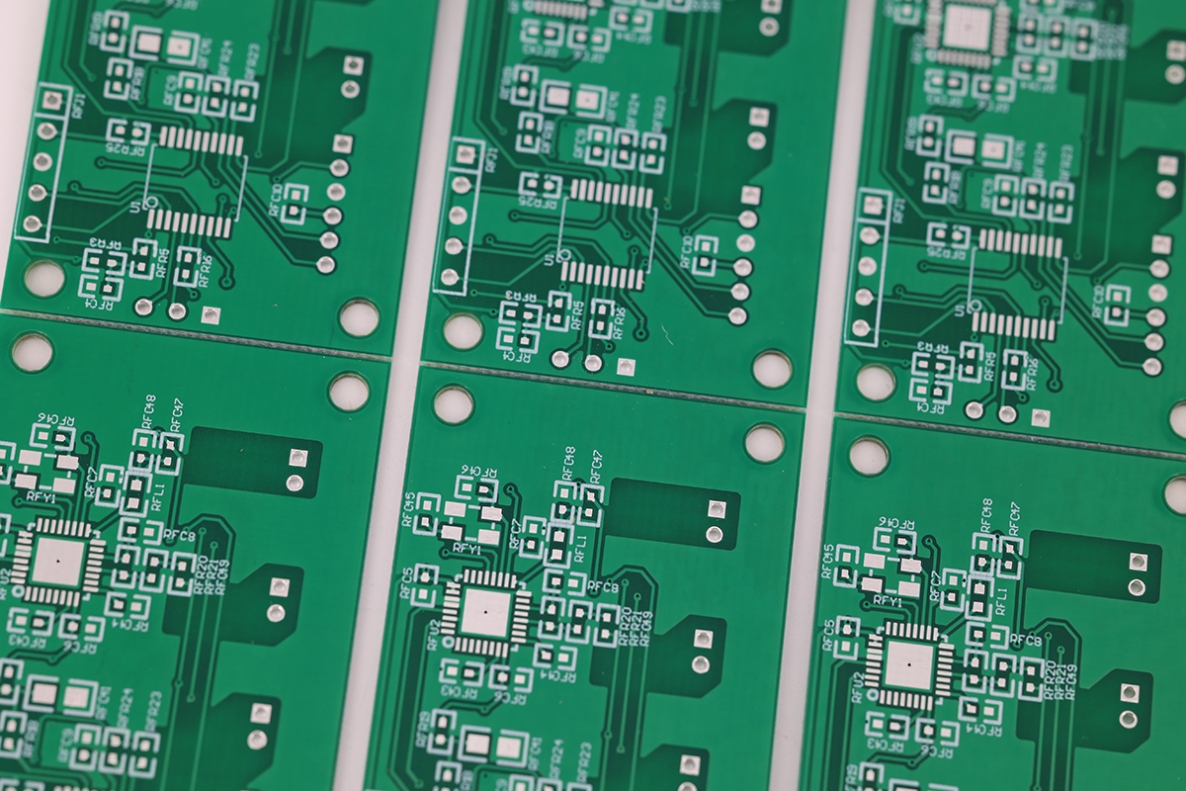

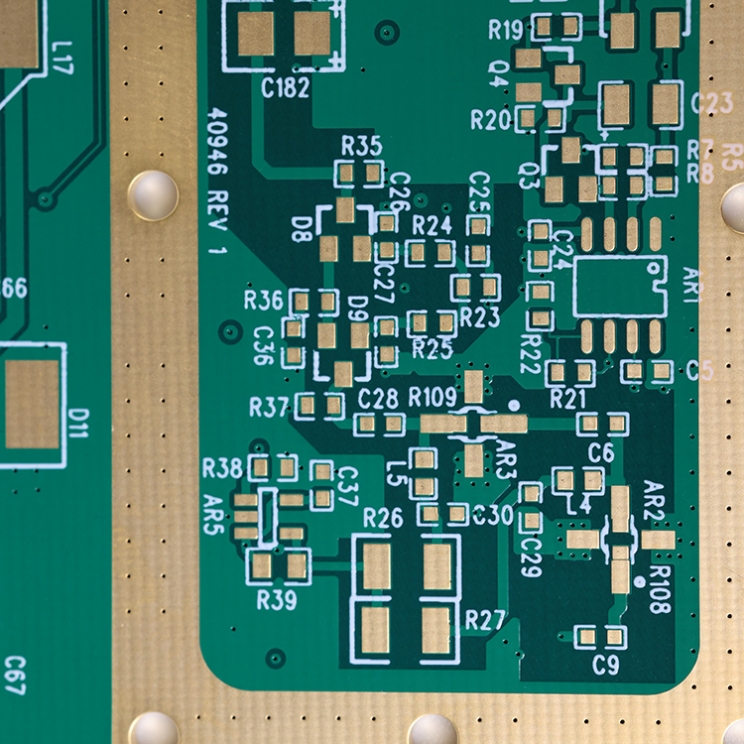

Single & Double PCB
The products are including single-sided, double-sided, and multi-layer board (4-18 Layers), which are widely used in computer, communication equipment, computer & network, medical appliances and household appliances.
PCB Specification | ||
1 | Description | PCB Specification |
2 | Material | FR-4/Aluminum/HTG150-180 FR-4/CEM-1 |
3 | Layer | Single & Double Sided PCB |
4 | Board Thickness | 0.2mm- 4.0mm |
5 | Board Thickness Tolerance | +/-10% |
6 | Copper thickness | 17.5um-175um (0.5oz-5oz) |
7 | Min Trace Width | 0.15mm |
8 | Min Space Width | 0.15mm |
9 | Min Drilling Dia | 0.2mm |
10 | PTH copper thickness | 0.4-2mil(10-50um) |
11 | Tolerance of Etching | ±1mil(±25um) |
12 | V-cut angle | 25°,30°,45°,60° |
13 | Pearl Strength of line | ≥ 6lb/in(≥ 107g/mm) |
14 | Impedance control and tolerance | 50Ω±10% |
15 | Twist&Wrap | ≤ 0.5% |
16 | Soldermask | Green, Red, Blue, White, Black, Yellow |
17 | Surface Finish/Plating | HASL/Lead Free /OSP/Gold Plating/Immersion Gold/ENIG |
18 | Certificate | ROSH. ISO9001, UL Certificate |
19 | File | Protel 99se/P-CAD/Autocad/Cam350 |
20 | Inner packing | Vacuum packing,Plastic bag |
21 | Outer packing | Standard carton packing |
